PilePro® connectors

Connect With Confidence

Overview

PilePro® connectors are less expensive than fabricated corners and readily available.

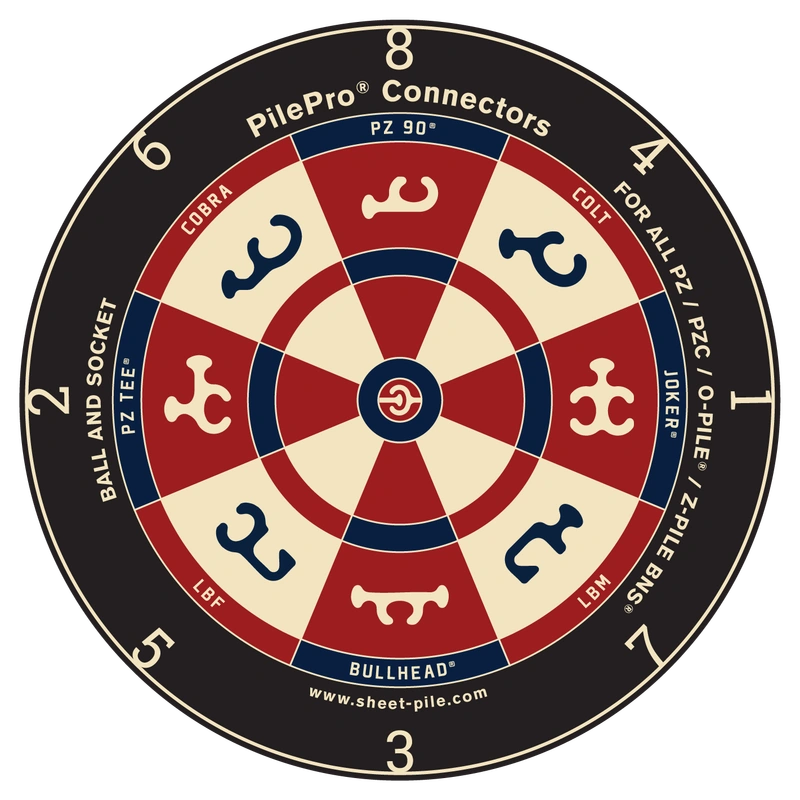

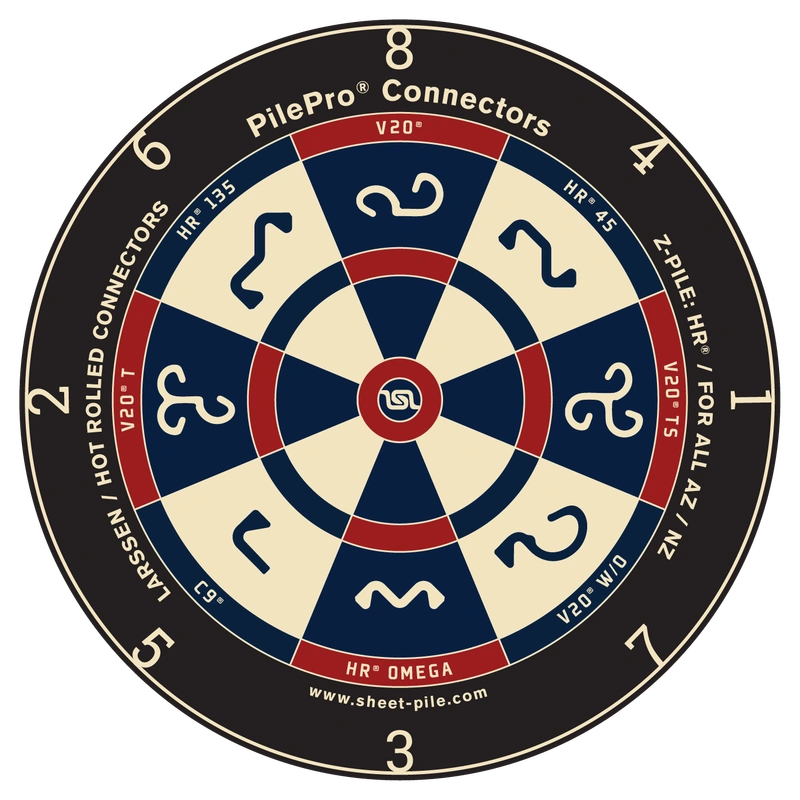

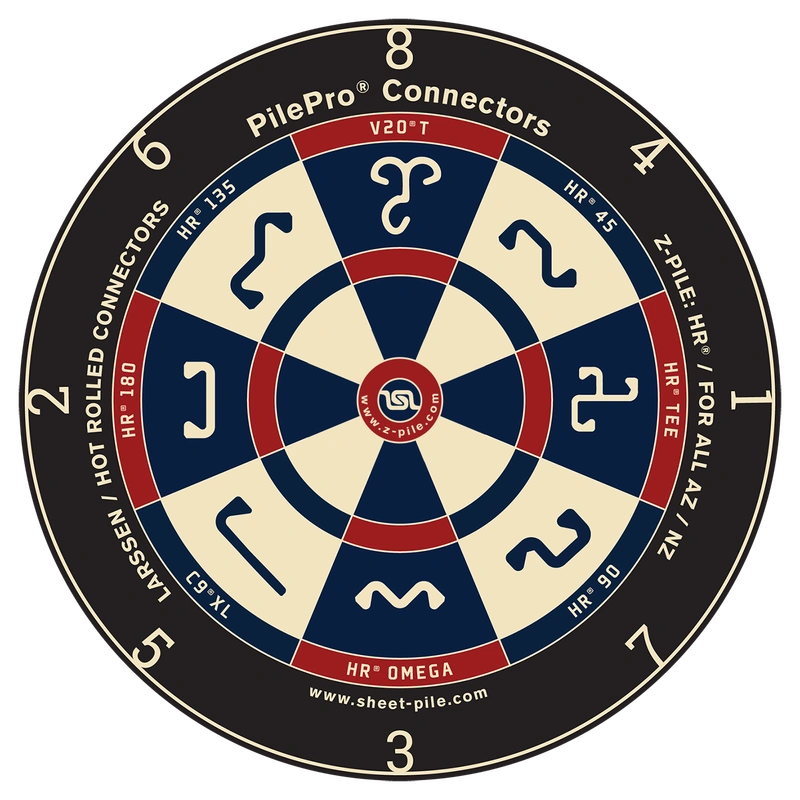

PilePro® connectors support all common system connections, including Larssen interlock (AZ/EZ/NZ/ZZ), ball-and-socket (PZ/PZC), cold-formed and flat web sheet pile from the world's sheet piling manufacturers. These connectors can increase your project's efficiency, as they are easier to drive and offer more flexibility than the sheet interlock.

Key features include:

Engineered Precision & Quality Assurance
Universal Compatibility
Cost Efficiency
Time-Saving & Reduced Risk

How It Works:

Fill out online product order form
A sales rep from PilePro will call to confirm order
Check clock — Orders placed before 9am (EST) get delivered the next day
Receive order on project job site within 24 hours

Announcing 24-HR Delivery:

PilePro knows immediate access to materials is critical to keep projects on time and budget. We now offer 24-HR Delivery, on in-stock Z sheet pile corner connectors, to your project job site or across most of the US. Or if 24-HR delivery is not available in your area, try our Quick Delivery – order any quantity of in-stock connectors, and they'll arrive to your job site within 2–4 days.

Benefits

Engineered products versus a non-uniform process

PilePro connectors are produced with the highest quality control standards. Each unit is measured by hand at the plant prior to shipment, thus ensuring that all the dimensions are within the given specification and will therefore, perfectly match the appropriate sheet piling section.

Less corrosion risk

Since PilePro connectors are interlocked and attached to sheet piling, the integrity of the steel wall acting as a single unit is always maintained.

Less expensive

PilePro connectors provide superior cornering solutions at a much lower cost. The all-in cost to the contractor of a fabricated corner is at least $65 per linear foot. PilePro however, is able to provide a cornering solution for much less, through either its use of certified distributors or via shipments delivered directly to the job site.

No delays

PilePro connectors enable the user to immediately build sheet wall configurations without having the delays and risks associated with the process of fabrication.

Less corner inventory

Modular corners and connectors allow distributors and contractors to greatly lower their inventory of cornering solutions. PilePro connectors can be adjusted to a wide range of angles and lengths, thus eliminating the need for a multitude of fabricated corners for each configuration. By comparison, when using fabricated corners contractors must have the specific corner to match not only the specific angle needed, but also the appropriate length and exact type and designation of sheet piling used.

Easily transported

PilePro connectors are easily bundled and can be transported efficiently with minimal risk of damage. Fabricated corners, on the other hand, do not stack well, take up much more space, weighs a great deal more and are prone to handling damage.

More durable

PilePro connectors are stronger and therefore, more durable than hot-rolled sheet pile of fabricated sheet pile corners. Due to precise engineering and the hot extrusion process, PilePro connectors have greater flexibility within the interlock. Typically they offer 20 to 30 degree of swing versus the 2 to 5 degree swing found in traditional fabricated corners; thus they are easier to drive and extract. Easier installation and extraction speeding up the job but also longer lasting sheet piles.
